Hyundai i-30: Fuel Delivery System / Filler-Neck Assembly

Hyundai i30 (PD) 2018-2025 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Filler-Neck Assembly

Repair procedures
Removal
1.

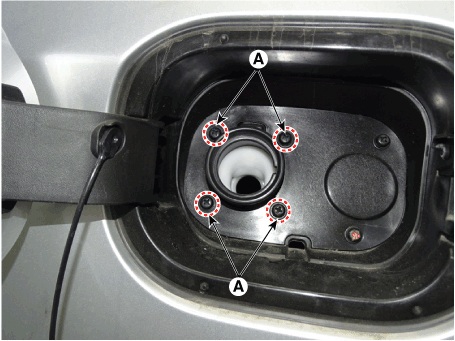

Open the fuel filler door and remove the filler-neck assembly mounting bolts (A).

2.
Remove LH rear wheel guard.
(Refer to Body (Interior and Exterior) - "Rear Wheel Guard")

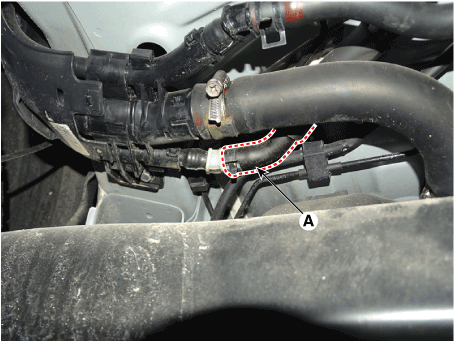

3.
Disconnect the leveling hose (A).

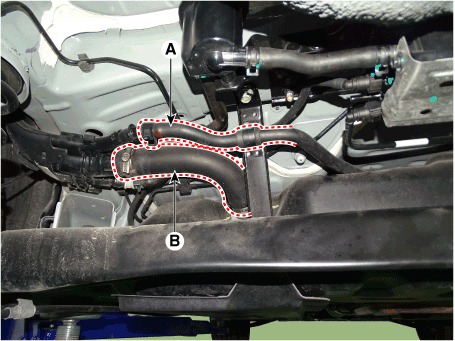

4.
Disconnect the fuel filler hose (B).
Tightening torque :
4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

5.
Disconnect the ventilation hose (A).

6.

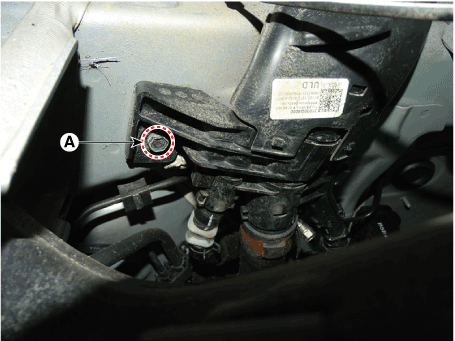

Remove the bracket mounting bolt (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

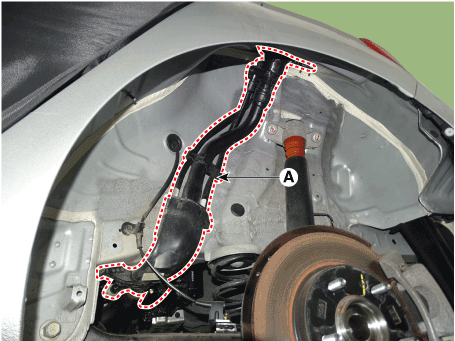

7.
Remove the filler-neck assembly (A).

Installation
1.
Install in the reverse order of removal.
