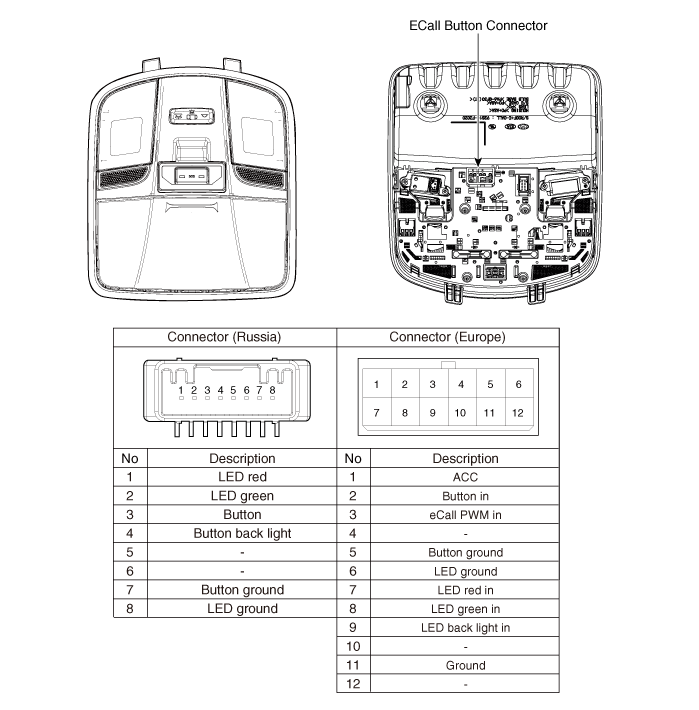

Components and components location

Component

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

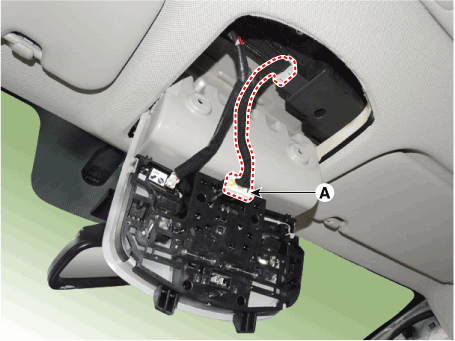

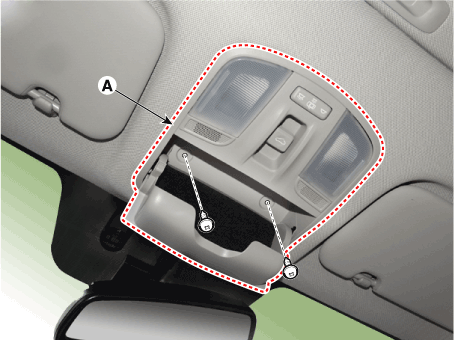

2.	Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console.Disconnect the overhead console connectors, and then remove the overhead console (A).

Installation

1.	Install the eCall button and button cover.

2.	Install the overhead console assembly after connecting the connector.

3.	Connect the negative (-) battery terminal.
